Project Description

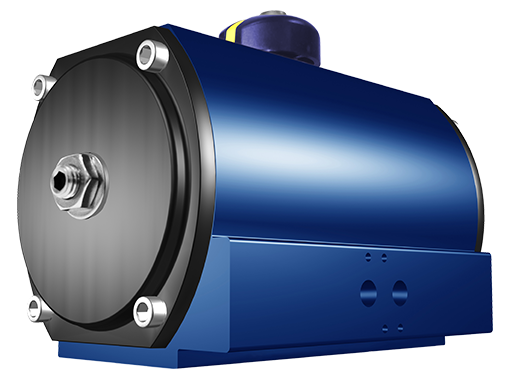

Type 1

Quarter turn (90°) & Type 1 Half turn (180°)

Compact rack and pinion actuator, Type 1, for quarterturn movement and modulating, Double Acting (DA) or Spring Return (SR). Body of Anodized Aluminum in blue colour as standard, other finishes available.

This actuator is generally recommended to ”small” Butterfly valves and all types of Ball valves.

The actuators comply fully with all the relevant industry standards for interfaces and connections such as ISO 5211, DIN 3337, VDI/VDE 3845 and NAMUR

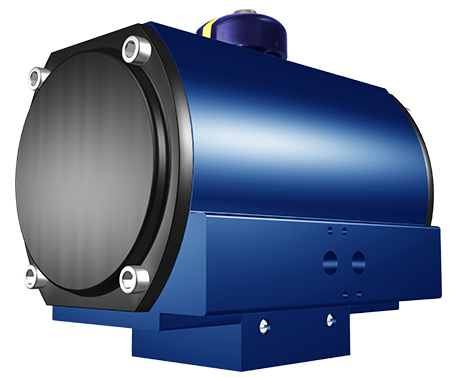

Type 2

Quarter turn (90°)

Compact rack and pinion actuator, Type 2, for quarterturn movement and modulating, Double Acting (DA) or Spring Return (SR). Body of Anodized Aluminum in blue colour as standard, other finishes available.

Type 2 has an unique design with a BAK (Body Adaptor Kit). The integral Body Adaptor Kit, which is interchangeable with a wide range of valves, makes it perfect for direct mounting and for stock keeping.

This actuator is generally recommended to ”large” Butterfly valves.

The actuators comply fully with all the relevant industry standards for interfaces and connections such as ISO 5211, DIN 3337, VDI/VDE 3845 and NAMUR.
